LGMG Operation and Maintenance Manuals PDF

LGMG operator's, electrical wiring diagrams, workshop, service and repair manuals, spare parts catalogs, error codes in PDF download

Title

File Size

Download Links

LGMG A45JE Maintenance Manual [PDF]

647.9kb

Download

LGMG A45JE Operation and Maintenance Manual [PDF]

1.9Mb

Download

LGMG AR45J / AR52J Operation and Maintenance Manual [PDF]

1.3Mb

Download

LGMG AS1932, AS2646, AS3246 Operation and Maintenance Manual [PDF]

2.3Mb

Download

LGMG AS4650, AS1930, AS1932, AS2632, AS2646, AS3246, AS4046 Operation And Safety Manual [PDF]

8Mb

Download

LGMG MT86H Operation and Maintenance Manual [PDF]

6.8Mb

Download

LGMG SS0407E, AS0608, AS0608E, AS0808, AS0808E, AS0812, AS0812E, AS1012, AS1012E, AS1212, AS1212E, AS1413 User Manual [PDF]

6.5Mb

Download

LGMG SS0507, S0507SDTCE10 Operation and Maintenance Manual [PDF]

2.6Mb

Download

LGMG SS0507E, SS0607E, AS0607, AS0607W, AS0607WE, AS0607E User Manual [PDF]

6.5Mb

Download

LGMG SS1230E, SS1432E, SS1932E, AS1930E, AS1932E, AS2632E, AS2646E, AS3246E, AS4046E Operation And Safety Manual [PDF]

8Mb

Download

LGMG T65J / T85J Maintenance Manual [PDF]

1.8Mb

Download

LGMG T65J / T85J Operation and Maintenance Manual [PDF]

1.5Mb

Download

LGMG MT86H

LGMG (Linyi Lingong Machinery Group) is one of the largest manufacturers of construction equipment from China. The company has been operating since 1972. One of the key areas of his work today is the release of career equipment: dump trucks and excavators.

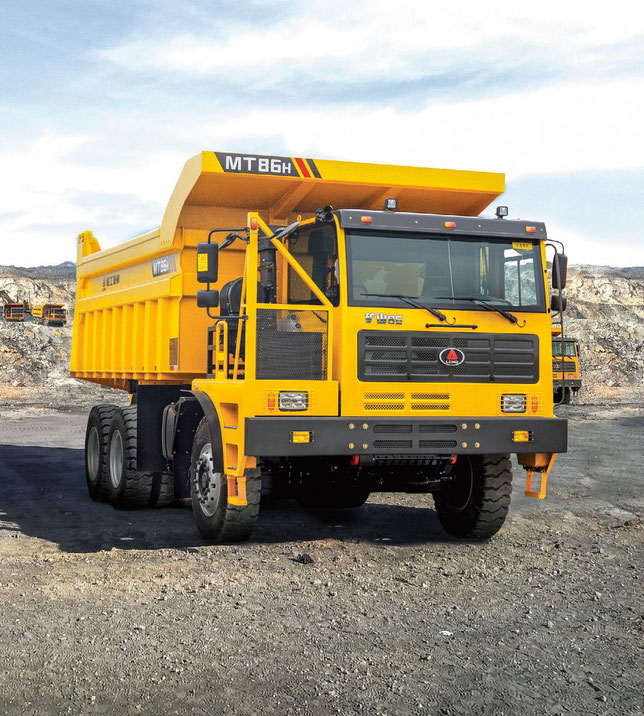

LGMG MT86H -  a universal career dump truck with a lifting capacity of 60 tons with a body volume of 35 cubic meters (in standard design). MT86H is an excellent compromise between classic (4 × 2) career dump trucks that allows you to start transporting ore materials at low starting costs for the purchase and maintenance of equipment.



Engine



The LGMG MT86H career is equipped with a six -cylinder Weichai engine with 420 hp. (There are also modifications with a power of up to 460 hp). The engine volume is 11 596 cubic meters. cm, maximum torque 1750 nm.



As additional equipment, a diesel pre -heater of the engine is available.

LGMG Operator's and Maintenance Manuals PDF
LGMG MT86H

Transmission and chassis



The LGMG MT86H career dump truck has a 6 × 4 wheeled formula. The technique is equipped with a fast 7DS200 gearbox, created specifically for high loads. The gearbox has 7 gears forward and 1 back. In the gearboxes, interprete and interdest differentials are installed, facilitating movements even in difficult conditions and on unstable soil.



Leading bridges for LGMG career dump trucks are made by Hande Axels (Weichai Group).



The suspension of the dump truck is implemented by leaf springs with longitudinal and transverse stabilizers.





The maximum load is 25 tons on the front axle and 35 tons on the rear. Tire size 14.00R25.
