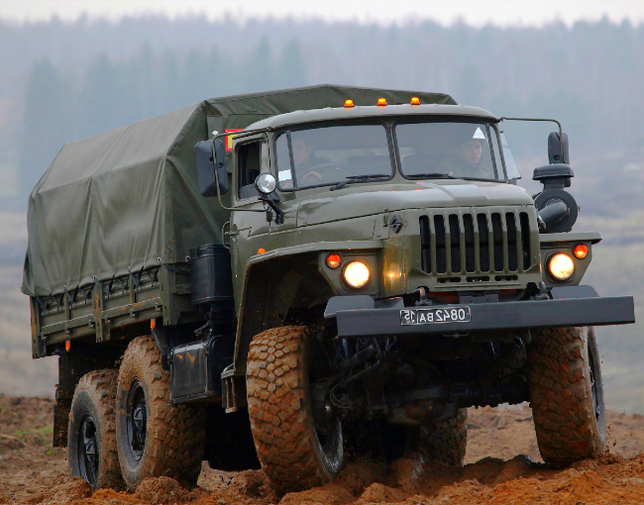

Ural-4320-three-axle all-wheel drive (formula 6x6) truck of increased cross-country truck of the Ural automobile plant (city of Miass of the Chelyabinsk region). In the enterprise's model range, in 1977, he replaced the Ural-375 truck.

According to some structural elements, the Ural-4320 car is unified with the previous model-Ural-375. However, it has a more modern design, ensuring the best capabilities and operational and technical characteristics as the Ural-375. The 4320th was the primary model of the Ural Automobile Plant until the fall of 2015 (until its official replacement for Ural Nekst.

The direct purpose of the Ural-4320 is the transportation of goods and people, the towing of trailers and various techniques on all types of roads and off-road (along rough terrain). The 6x6 wheel formula, powerful diesel engines and solid road clearance give this car significant off-road potential. In addition, Ural-4320 easily overcomes swampy places, 1.6-meter fords, 2-meter ditches and ditches, which enters 60%.

The Ural-4320 chassis was used as a database for creating not only onboard and torn cars with a standard or elongated layout. But also: for shift buses (22- or 30-seater), saddle tractors and pipelines, tankers and fuel supplements, installations and special equipment for oil and gas production, road and communal equipment, fire protection and, of course, for the needs of the armed forces.

The technical capabilities of the Ural-4320 were planned, taking into account the army service of this truck of increased cross-country ability: a colossal margin of strength, high maintenance, simplicity of design and readiness for operation under challenging conditions.

Ural-4320 Technical characteristics and specifications:

• The overall dimensions of the Ural-4320 chassis: length-7.588 m; width-2.5 m, height-2.785 m, base-3.525+ (1.4) m. Modifications with a shortened length-7.388 m; and elongated - 7.921 m. and 9.545 m.
• The mass in the equipped state - is from 8 to 8.7 tons; The group of the cargo transported is 7, 10, and 12 tons, depending on the modification.
• The load distribution of the equipped car: on the front axle - 4.550 tons, on the rear trolley - 3.500 tons.
• Distribution of the car's total mass load: on the front axle - 4.635 tons, the back axis is 10.570 tons.
• The internal dimensions of the standard body are 5685x2330x1000 mm.
• The radius of rotation is 10.8 m on the outer wheel, the overall 11.4 m.
• Road clearance - 400 mm.
• The width of the track is 2 m (the front and rear - are the same).
• The fuel tank's capacity is 200 litres, with the possibility of installing an additional 60 litres.
