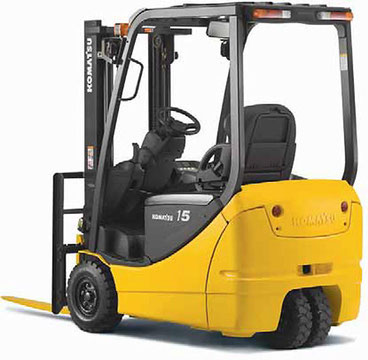

Komatsu forklift FB15M-12  Fault Codes List

See also: Shop manual for Komatsu in pdf - free download

Title

File Size

Download Links

Error Codes for Komatsu Excavator / s PC400-7, 400LC-7 - Electrical Equipment [PDF]

108.7kb

Download

Komatsu PC400-7 Diagnostic Trouble Codes [PDF]

67.4kb

Download

Komatsu D65PX-15 Error Codes list [PDF]

21kb

Download

KOMATSU FAULT CODES LIST [PDF]

94.4kb

Download

Komatsu FB15-12 Forklifts Error Codes list [PDF]

570.4kb

Download

List of Fault Codes for Komatsu Forklifts FB15-12 [PDF]

91.1kb

Download

1. Fault code (Ala)

Code

Description Malfunction



ALA-5206

Starting Switch Transferred в Position ON, In the The It's time As Lever Management Lift Installed в Position Great From Neutral.



ALA-5207

Starting Switch Transferred в Position ON, At the It's time As Lever Management Tilt Installed в Position Great From Neutral.



ALA-5208

Starting Switch Transferred в Position ON в The It's timeAs Lever Att 1 Management Work Equipment 1 Installed в Position Great From Neutral.



ALA-5209

Starting Switch Transferred в Position ON, в The TemporaryBedroom As Lever Att 2 Management Work Equipment 2 Installed в Position Great From Neutral.



ALA-5210

Starting Switch Transferred в Position ON, в The TemporaryBedroom As Lever Att 3 Management Work Equipment 3 Installed в Position Great From Neutral.



ALA-5229 *

Automatic Function Adjustment Angle HorizonIn Tilt Disables Before Or After OnProposals Stop.







ALA-5255 *

Incorrect control of automatic pagingAngle of the horizontal slope.

1.     Move the tilt control lever to theMilitary Direction.

2.     Enable Buttons Horizontal Tilt в The time As Lever Management Tilt FindsSmiling в Horizontal Position.

3.     Enable Automatic Functions HorizonIn Tilt в The It's time As On Car MouthNovlene Cargo.

Komatsu FB15M-12 Fault Codes
Komatsu FB15M-12

* The machine is equipped with automatic adjustment of the angle of the horizontal inclination.

2. Code Errors (ERR)

Code

Character Malfunction

ERR-3082

Fault Channel Communication Between Controller Right) Turn и Controller Left) Turn.

ERR-3084

Fault Channel Communication Between Controller Right) Turn и Controller Loading and unloading Operations.

ERR-3281

Fault Channel Communication Between Controller Right) Turn и Controller Left) Turn.

ERR-3284

Malfunction of the communication channel between the loading and unloading controller and the controller (left) of the turn.

ERR-5081

Fault Channel Communication Between Controller Right) Turn и Controller Loading and unloading Operations.

ERR-5082

Malfunction of the communication channel between the controller (left) and the loading and unloading controller.

ERR-5085

Fault Channel Communication Between Controller Proportional Electromagnetic Valve And Controller of loading and unloading Operations.

ERR-5087

A malfunction of the communication channel between the power supply controller and the loading and unloading controller.

ERR-5088

Fault Channel Communication Between Controller Loading and unloading Operations и ControllerRum Source Power.

ERR-5211

The lift lever signal is incorrect.

ERR-5212

Invalid tilt lever signal.

ERR-5213

Wrong signal of the working equipment control lever Att1.

ERR-5214

Wrong signal of the working equipment control lever Att2.

ERR-5215

Wrong signal of the working equipment control lever Att3.

Code

Character Malfunction

ERR-5216

Incorrect lifting pressure sensor signal.

ERR-5217

Wrong angle sensor signal.

ERR-5218

Improper operation of the proportional electromagnetic lift valve.

ERR-5219

Improper operation of proportional electromagnetic tilt valve.

ERR-5220

Incorrect Work Proportional Electromagnetic Valve Work Equipment Att1.

ERR-5221

Incorrect Work Proportional Electromagnetic Valve Work Equipment Att2.

ERR-5222

Incorrect Work Proportional Electromagnetic Valve Work Equipment Att3.

ERR-5292

Malfunction of the power supply of the proportional electromagnetic valve controller.

ERR-5293

Improper operation of the proportional electromagnetic valve controller.

ERR-5294

The working machine sensor signal is incorrect.

ERR-5295

Improper operation of the proportional electromagnetic valve controller.

ERR-5296

Error Communication Process Controller Proportional Electromagnetic Valve.

ERR1 4-8110

Error in the communication process of the controller (right) move.

ERR1 8-8110

Error in the communication process of the controller (left) move.

Err3 0-8110

Error in the communication process of the loading and unloading controller.

Err3 4-8110

Error in the communication process of the loading and unloading controller.

Err4 0-8110

Error in the instrument panel communication process.

ERR1 4-8120

Bus data transfer/Reception error CAN (right) turn.

ERR1 8-8120

Bus data transfer/Reception error CAN The controller (left) of the turn.

Err3 0-8120

Bus data transfer/Reception error CAN Loading and unloading controller.

Err3 4-8120

Bus data transfer/Reception error CAN of the proportional electromagnetic valve controller.

Err4 0-8120

Bus data transfer/Reception error CAN Dashboard.

ERR1 4-8130

Communication channel malfunction CAN Between the controller (right) stroke and the instrument panel.

ERR1 8-8130

Communication channel malfunction CAN Between the controller (left) of the turn and the instrument panel.

Err3 0-8130

Fault Channel Communication CAN Between Controller Loading and unloading Operations и Panel Devices.

Err3 4-8130

Fault Channel Communication CAN Between Controller Proportional Electromagnetic ClassicPan and panel Devices.

ERR1 4-8140

Incorrect data transfer on the bus CAN (right) turn.

ERR1 8-8140

Incorrect data transfer on the bus CAN The controller (left) of the turn.

Err3 0-8140

Incorrect data transfer on the bus CAN Loading and unloading controller.

Err3 4-8140

Incorrect data transfer on the bus CAN of the proportional electromagnetic valve controller.

Err4 0-8140

Incorrect data transfer on the bus CAN Dashboard.

Err4 0-8314

Communication channel malfunction CAN Between the controller (right) stroke and the instrument panel.

Err4 0-8318

Communication channel malfunction CAN Between the controller (left) of the turn and the instrument panel.

Err4 0-8330

Fault Channel Communication CAN Between Controller Loading and unloading Operations и Panel Devices.

Err4 0-8334

Fault Channel Communication CAN Between Controller Proportional Electromagnetic ClassicPan and panel Devices.

Err4 0-8510

Fault Channel Communication CAN Panel Devices After Installation Starting Switch в Position ON.

Instrument panel fault Code (Movement controller)

Code

Character Malfunction

ERR-300

Damage to the main contactor, burned Fuse

ERR-300

Short Circuit Main Contactor

Err-300 Err-320

Low voltage (battery voltage drop)

ALA-Ala-320

Incorrect training operation warning

Err-301 Err-321

The controller of the Movement system (short-circuit of the upper and lower Fet)

Err-301 Err-321

Movement Control controller (short-circuited upper side)

Err-301 Err-321

Movement Control controller (short-circuited lower side)

Err-301 Err-321

Controller of the Movement system (damage of the phase wire U)

Err-301 Err-3214

Controller of the Movement system (damage of the phase wire V)

Err-301 Err-321

Controller of the Movement system (damage of the phase wire W)

ERR-301

Defect of the fast charging circuit (the defect of the charging circuit of the capacitor P And N)

ALA-Ala-322

Controller of the movement system (temperature rise)

Err-302 Err-3221

Controller of the movement system (temperature does not meet the norm)

ALA-Ala-323

Motor Movement (Increase Temperature)

Err-303 Err-3231

Motor movement (temperature does not meet the norm)

Err-303 Err-3230

Short circuit between hydraulic motor phases of movement (short circuit Load circuits).

Err-305 Err-325

Malfunction of the temperature sensor of the movement system controller

Err-305 Err-3251

Malfunction of the temperature sensor of the hydraulic motor of movement

Err-305 Err-325

Wrong Output Signal Sensor Forces Current в System Movement (phase U, Phase W)

Err-305 Err-325

Fault Accelerator, Switch Accelerator

ERR-305

Fault Potentiometer Angle Wheels. (measured Angle Not Matches Normal)

Err-305 Err-325

Sensor Frequency Rotation Hydraulic motors Movement (Output Signal Phase A Not accordanceWelcomed Normal).

Err-305 Err-325

Sensor Frequency Rotation Hydraulic motors Movement (Output Signal Phase B Not accordanceWelcomed Normal).

ERR-306

Malfunction of the front-reversing switch

ERR-306

Malfunction of the logical element of the seat sensor _a and Seat Sensor _b.

ERR-308 ERR-308 Err-3281 Err-328



Communication channel malfunction CAN. (Communication channel malfunction)

Instrument panel Fault Code (Loading and unloading controller)

Code

Character Malfunction

ERR-5004

Low voltage (battery voltage drop)

ALA-5005

Incorrect training operation warning

Err -5010

Controller of loading and unloading operations (short-circuiting of the upper and lower Fet)

Err -5011

Controller of loading and unloading operations (short circuit of the top side)

Err -5012

Controller of loading and unloading operations (short-circuit of the bottom side)

Err -5013

Controller of loading and unloading operations (damage of the phase wire U)

Err -5014

Controller of loading and unloading operations (damage of the phase wire V)

Err -5015

Controller of loading and unloading operations (damage of the phase wire W)

ALA-5021

Controller of loading and unloading operations (temperature rise)

Err -5021

Controller of loading and unloading operations (temperature does not meet the norm)

ERR-5030

Short Circuit of the pump motor phases (short circuit of the load circuits)

ALA-5031

Motor Pump (Increase Temperature)

Err -5031

Pump motor (temperature does not meet the norm)

ERR-5040

Input Signal External Controller Goes For Limits Normative Range

Err -5050

Malfunction of the temperature sensor of the loading and unloading controller

Err -5051

Malfunction of the pump motor temperature sensor

Err -5052

Wrong Output Signal Sensor Forces Current в System Loading and unloading Operations (phase U, Phase W)

Err -5055

Fault Sensor Angle Turn Steering Wheels (measured Angle Not Matches Normal)

Err -5057

Malfunction of the pump motor speed sensor

ERR-5081

Communication channel malfunction CAN (Communication channel out of order)

Comments: 1
  • #1

    mohsen (Wednesday, 30 April 2025 13:00)

    mohsen

  • Komatsu forklift FB15M-12 Fault Codes List

Password:

https://www.pdfmanual4trucks.com/


Use of materials placed on this site is allowed only if there is an active link to pdfmanual4trucks.com. Copyright 2016 – 2022©. If you have any questions, please contact with us.

About | Privacy Policy | Sitemap
Log out | Edit
  • PDFmanual4trucks
  • Avia
  • AEC
  • ACE
  • AGCO
  • Agrale
  • Agrison
  • Aichi
  • Albion
  • Allis Chalmers
  • Allison Transmission
    • Allison Transmission 3000/4000 series fault code list
    • Allison Transmission Codes (5th Generation Electronic Shift Selector)
    • Allison 1000/2000/24000 Series fault codes
  • American LaFrance
  • AMW
  • Ariens
  • Ashok Leyland
  • Astra
  • Atlas Copco
  • Atlas Weyhausen / Weycor
  • Ausa
  • Austin
  • Autocar
  • Balkancar
  • Baoli
  • BAW
    • BAW-Fenix (Euro-3) fault codes
  • Bedford
  • Beiben
  • Beifang Benchi
    • Beifang Benchi electrical wiring diagram
  • BelAZ
  • Bell
  • Bendi
  • Berliet
  • BharatBenz
  • Big Joe
  • Bis
  • Bobcat
    • Bobcat fault codes list
  • Bomag
  • Branson
  • Brockway
  • BT
  • BYD
  • CAMC
  • CanyCom
  • Carer
  • Case IH
    • CASE STX Steiger 350/400/450/500/550/600 Fault Codes list
  • Cesab
  • Challenger
  • Chery
  • Citroen
  • Claas
  • Clark
  • Crown
  • CVS Ferrari
  • Daewoo
  • DAF
    • DAF Truck Fault Codes
    • DAF LF45IV, LF55IV, CF65IV, CF75 IV, CF85 IV, XF95, XF105 - Comments on fault codes in HYDRONIC 10
  • Daihatsu
  • Dalian
  • David Brown
  • Dayun
  • Detroit Diesel Engine
    • Detroit Diesel Engine Fault codes
  • Deutz
    • Deutz diagnostic trouble codes
  • Diamond T
  • Dino
  • Dodge
  • DongFeng
  • Doosan
    • DOOSAN DTCs - fault codes
    • Troubleshooting of the Excavator Doosan Solar 225 NLC-V
  • Dressta
  • Drexel
  • Duramax Engine
  • Dynapac
  • Eaton Transmission
    • Eaton Transmission Fault Codes
    • Eaton Transmission Fault Code 64 - ECA Fault
    • Eaton Autoshift Fault Code 88
    • Fault Code Retrieval and Clearing
    • Fault Code Isolation Procedure Index
  • Ebro
  • Eicher
  • ETF
  • EP
  • FAW
  • Fendt
  • Ferguson
  • FiatAgri
  • Ford
  • Fordson
  • Foton
  • Freightliner
  • GAZ
  • Gehl
  • Genie
  • Ginaf
  • Gleaner
  • Godrej
  • Goodsense
  • GROS
  • Hangcha
  • Hania
  • Haulotte
  • Heli
  • Hino
  • Hitachi
  • Holmer
  • Honda
  • Howo
  • Hyster
  • Hyundai
    • Hyundai Excavator, Forklifts, Wheel Loaders Service & Repair manuals free download
  • IFA
  • International
  • Iseki
  • ISUZU
    • Isuzu truck fault codes
    • Isuzu truck OBD2 fault codes
  • Iveco
    • Iveco trucks wiring diagrams free download
    • Iveco Daily Service Repair Manual
    • Iveco EuroCargo Service Repair Manual
    • Iveco Stralis Service Repair Manual
    • Iveco Trakker Service Repair Manual
  • JAC
  • Jacobsen
  • JCB
  • Jinma
  • JLG
    • JLG Telehandler Manuals PDF
  • John Deere
    • John Deere Lawn Mowers Operator's Manual PDF
    • John Deere Fault Codes List
  • Jungheinrich
    • Jungheinrich ETV214 Error Codes List
    • Jungheinrich EFG-Vac 30 - Multifunction display & error codes
  • Kalmar
  • KamAZ
  • Kato
  • Kenworth
  • Kia
  • Kioti
  • Kobelco
  • Komatsu
    • Komatsu forklift FB15M-12 Fault Codes List
  • KrAZ
  • Kubota
    • Kubota SLV90 Error Codes List
  • Landini
  • Landoll
  • Laverda
  • LGMG
  • Liebherr
  • Linde
  • Lombardini
  • Lull
  • MACK
    • Mack truck wiring diagram free download
    • Mack truck fault codes list
  • Magirus-Deutz
  • Mahindra
  • MAN
    • MAN ECAS 2 fault codes
    • MAN FFR Fault Codes List
    • EDC7 MAN fault codes 81 to 3736
    • EDC7 MAN fault codes 3737 to 3966
  • Manitou
  • Marmon-Herrington
  • Massey-Harris
  • MAZ
  • McCormick
  • Mercedes-Benz
    • Instructions for using the on-board computer Mercedes-benz Actros
    • Mercedes Benz Actros Fault codes - MR engine management system PLD
    • Mercedes Astros. WS block (Maintenance system) - Fault codes
  • Mitsubishi
  • Morooka
  • MTZ
  • Mustang
  • New Holland
    • New Holland Baler Manuals free download
    • New Holland Tractor Manuals free download
    • New Holland Excavators Manuals free download
  • Nissan
  • Noblelift
  • Oshkosh
  • Paccar
  • Pacific
  • Pegaso
  • Peterbilt
    • Peterbilt wiring schematic PDF
  • Pinguely
  • Renault
  • REO
  • Samsung
  • Sany
  • Satoh
  • Scania
    • Scania R series
    • Scania G series
    • Scania P series
  • Sears
  • Shaanxi
    • Shaanxi (Shacman) Fault Codes list
  • Shantui
  • Shibaura
  • Sinoboom
  • Sisu
    • Sisu Engine: Parts Catalogs & Workshop Service Manuals PDF
    • Sisu Axles Parts Manuals and Service Guide PDF
  • SML
  • Snorkel
  • Solis
  • Sterling
  • Steyr
  • Still
  • Sumitomo
  • SunBear
  • Tadano
    • Tadano TR-100M Error codes list
  • Takeuchi
  • TATA
  • Tatra
  • Taylor
  • TCM
  • Terberg
  • Terex
  • Thwaites
  • Tiger
  • Toyota
    • Toyota electric forklift error codes
    • Toyota forklift error codes
  • TYM
  • UD
  • UniCarriers
  • Ural
  • Valtra
  • Vantage
  • Versatile
    • Versatile 2375 Tractor Fault Codes List PDF
  • Volvo
    • VOLVO FH12 with engine D12A fault codes
    • Volvo trucks MID Fault Codes
    • Volvo trucks Fault Codes - MID 128
    • MID 130 Volvo Gear box fault codes
    • MID 136 - Volvo brake system fault codes
    • MID 140 - dashboard fault codes Volvo
    • MID 141 Volvo FH "Dynafleet " Fault Codes
    • MID 144 Volvo FH Vehicle Electronic Control Unit Fault Codes
    • MID 146 Volvo FH Ver.2 - Cabin climate control unit fault codes
    • MID 150 - Volvo Suspension fault codes
    • MID 163 Volvo FH Ver.2 - Imobilizer control unit fault codes
    • MID 166 Volvo FH Version 2 Fault Codes: Tire pressure monitoring system
    • MID 179 Volvo FH Version 2 - Fms Gateway fault codes
  • Voltas
  • Wacker Neuson
  • Wechai Power engines
  • Western Star
  • XCMG
  • Yale
  • Yanmar
    • Yanmar Fault Codes List
  • Yuchai
  • Yuejin
  • Zetor
  • ZIL
  • Zoomlion
  • Scroll to top
